| GENERAL |
| Type: | Military HF transceiver |
| Frequency range: |
3.7-6.0 MHz in nine ranges (Depending on capacitor unit)
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | |
| Mode: | CW |
| Channels / memory management: | None |
| Duplex shift / offset: | No |
| Power supply: | 4.8 and 110 VDC (Battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | ? ohm / ? |
| Dimensions (W*H*D): | ? mm (?") |

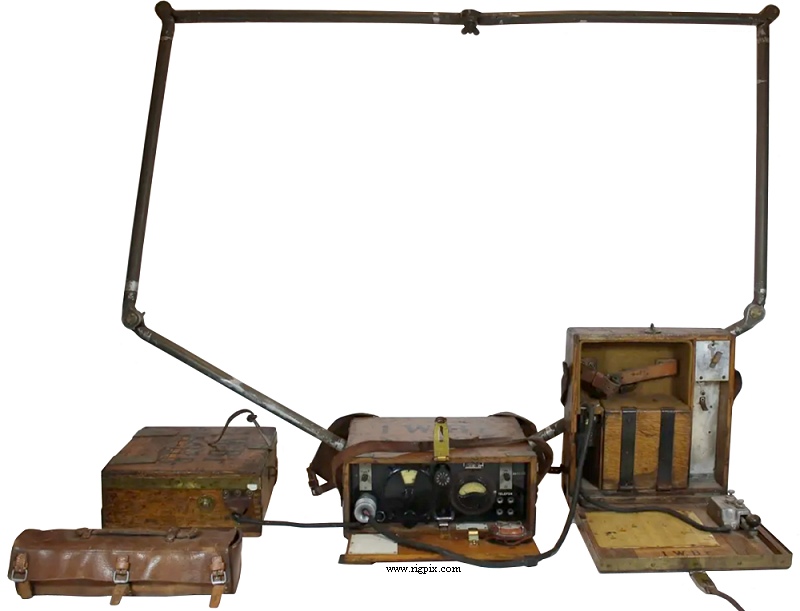

| Weight: | 31.55 Kg (69.6 lb), complete set, ready to go |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Super-regenerative
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 1 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Sweden, 1928-193x (Discontinued) |
| Additional info: |
Tubes.
|
| Related documents: |
Manual (1.7 Mb, in Swedish)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
