Lafayette HA-520

A picture of Lafayette HA-520

SPECIFICATIONS

GENERAL
Type:VHF receiver
Frequency range:30-50 / 152-174 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:FM
Channels / memory management:None
Power supply:Mains: 117 VAC
Current drain / power consumption:47 W
Antenna impedance / connector:? ohm / Screw terminals
Dimensions (W*H*D):305*127*203 mm (12*5*8")
Weight:6.5 Kg (11.9 lb)
Other features:Illuminated dial.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:3 uV (20 dB noise quieting)
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 1966-1967 (Discontinued)
Additional info: 10 tubes
New price 1966 in the US: $89.95
New price 1967 in the US: $89.95
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -

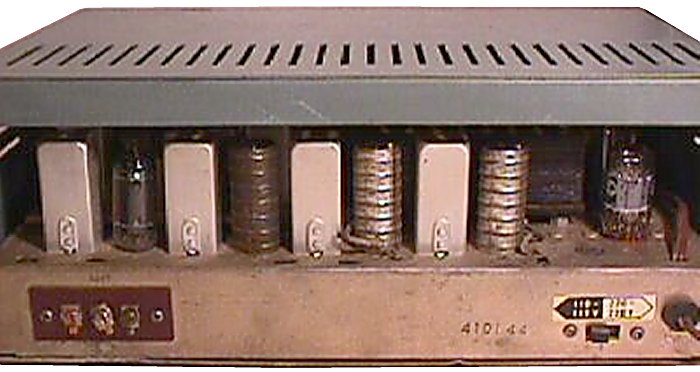

A rear inside picture of Lafayette HA-520
