Kenwood TR-7950

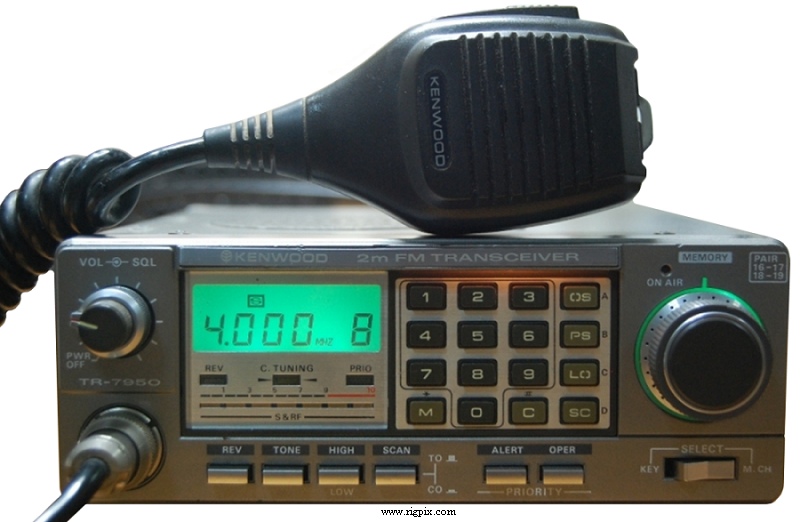

A picture of Kenwood TR-7950

SPECIFICATIONS

GENERAL
Type:Amateur VHF transceiver
Frequency range:144-146 MHz (Europe)
142-149 MHz (USA)
Tuning steps:? KHz (Europe)
5 KHz (USA)
Mode:FM
Memory channels:21 regular with priority function and scanning
Power supply:13.8 VDC 15%
Current drain/power consumption:RX: 500-900 mA
TX: 3-9.5 A
Antenna impedance/connector:50 ohms / SO-239
Dimensions (W*H*D):175*64*220 mm
Weight:1.9 Kg
Other features:




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:0.25 uV (12 dB SINAD)
Selectivity:12 KHz (-6 dB), 24 KHz (-60 dB)
Image rejection:
AF output power/speaker:2 W at 5% distortion / 8 ohms
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:Hi: 45 W
Lo: 5 W
Modulation system:Phase shift
Max FM deviation:5 KHz
Spurious emissions:Less than -60 dB
Microphone connector/impedance:6-pin / 500 ohms




MISCELLANEOUS
Manufactured:Japan, 1982-198x (Discontinued)
Additional info:
Related documents:
Modifications:
Options/Accessories:
KPS-12
MB-9
SP-40
TU-79
Fixed-station power supply, 13.8 VDC, 12 A
Quick release mobile bracket
Compact mobile speaker
Three frequency diode programmable tone unit

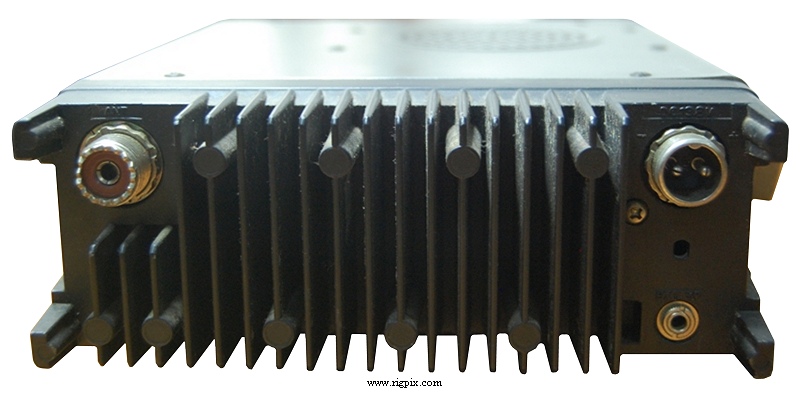

A rear picture of Kenwood TR-7950
