| GENERAL |

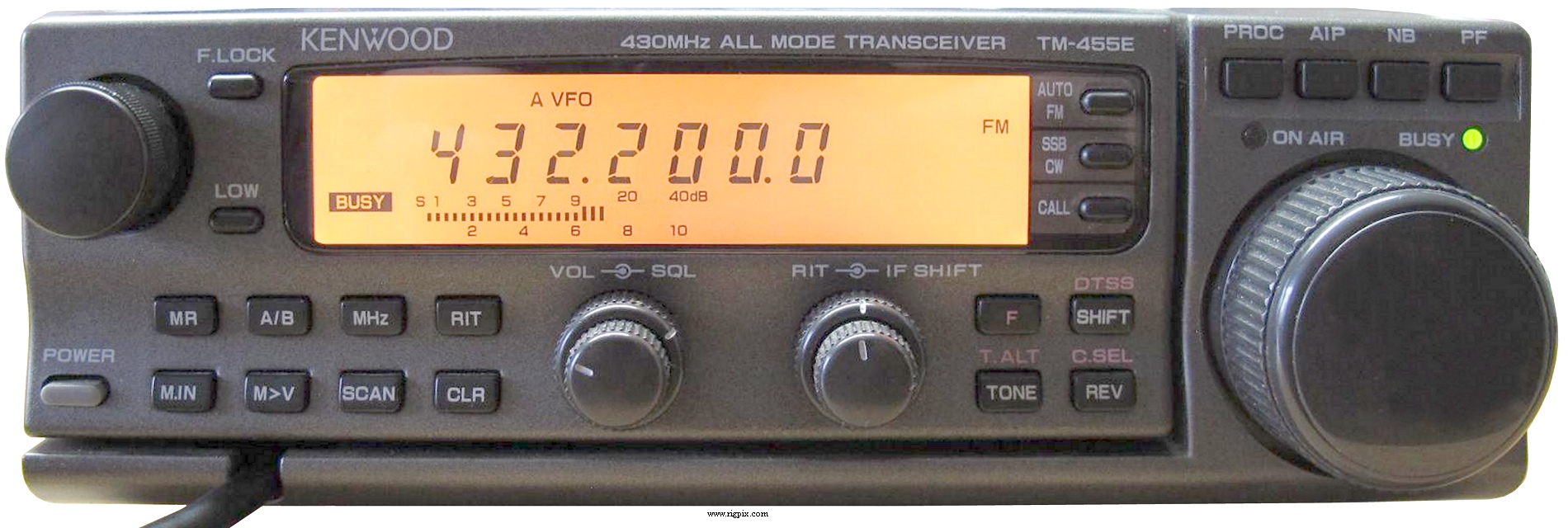

| Type: | Amateur UHF transceiver |
| Frequency range: |
Europe
TX: 430-440 MHz
RX: 430-440 MHz
|
| Tuning steps: |
Alt. tuning: FM 12.5 KHz, SSB/CW 10 KHz (Defaults)
VFO: "Fuzzy logic" (See the manual)
|
| Frequency stability: | ±1 ppm @ -10 to +50°C (14 to 122°F) |
| Mode: | FM / SSB / CW |
| Channels / memory management: |
50 regular
49 split
1 call
1 scan edge pair
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±1.6 and -7.6 MHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 900 mA (No signal)
TX: Max 15 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 180*60*216 mm (7.09*2.36*8.5") |
| Weight: | 2.8 Kg (6.17 lb) |
| Other features: |
DTSS. CTCSS/PL-encoder (Optional decoder). TCXO. IF Shift.
1K2 / 9K6 packet jack. Detachable front panel
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (SSB/CW)
1st IF: 41.415 MHz
2nd IF: 10.695 MHz
Triple conversion superheterodyne (FM)
1st IF: 41.415 MHz
2nd IF: 10.695 MHz
3rd IF: 455 KHz
|
| Sensitivity: |
FM: 0.18 uV (12 dB SINAD)
SSB/CW: 0.11 uV (10 dB (S+N)/N)
|
| Selectivity: |
FM: 12 KHz (-6 dB), 28 KHz (-60 dB)
SSB/CW: 2.1 KHz (-6 dB), 4.8 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: |
FM: Reactance
SSB: Balanced
|
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1994-19xx (Discontinued) |
| Additional info: |
New price 1995 in Sweden: SEK 12993:-
New price 1996 in Sweden: SEK 11661:-
|
| Related documents: |
User manual (3.7 MB)
Service manual (18 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
DFK-3
DFK-4
DFK-7A
MB-13
MC-45
MC-45DM
MC-45DME
MC-45E
MC-60A
MC-80
MC-85
MJ-88
PG-2N
PG-3G
PG-5A
PS-33
PS-53
SP-41
SP-50B
TSU-8
VS-2
|
Detachable front panel kit, 3 m (9.8 ft)
Detachable front panel kit, 4 m (13.1 ft)
Detachable front panel kit, 7 m (23 ft)
Mobile mounting bracket
Multifunction microphone
Multifunction microphone with DTMF pad
Multifunction microphone with DTMF pad
Multifunction microphone
Desk microphone, dynamic
Desk microphone, electret
Desk microphone, electret
Microphone plug adapter
DC power cable
DC line noise filter
Data cable
Regulated power supply
Regulated power supply
Mobile speaker
Communications speaker
CTCSS/PL unit
Voice synthesizer unit
|
|
