Kenwood TH-22E

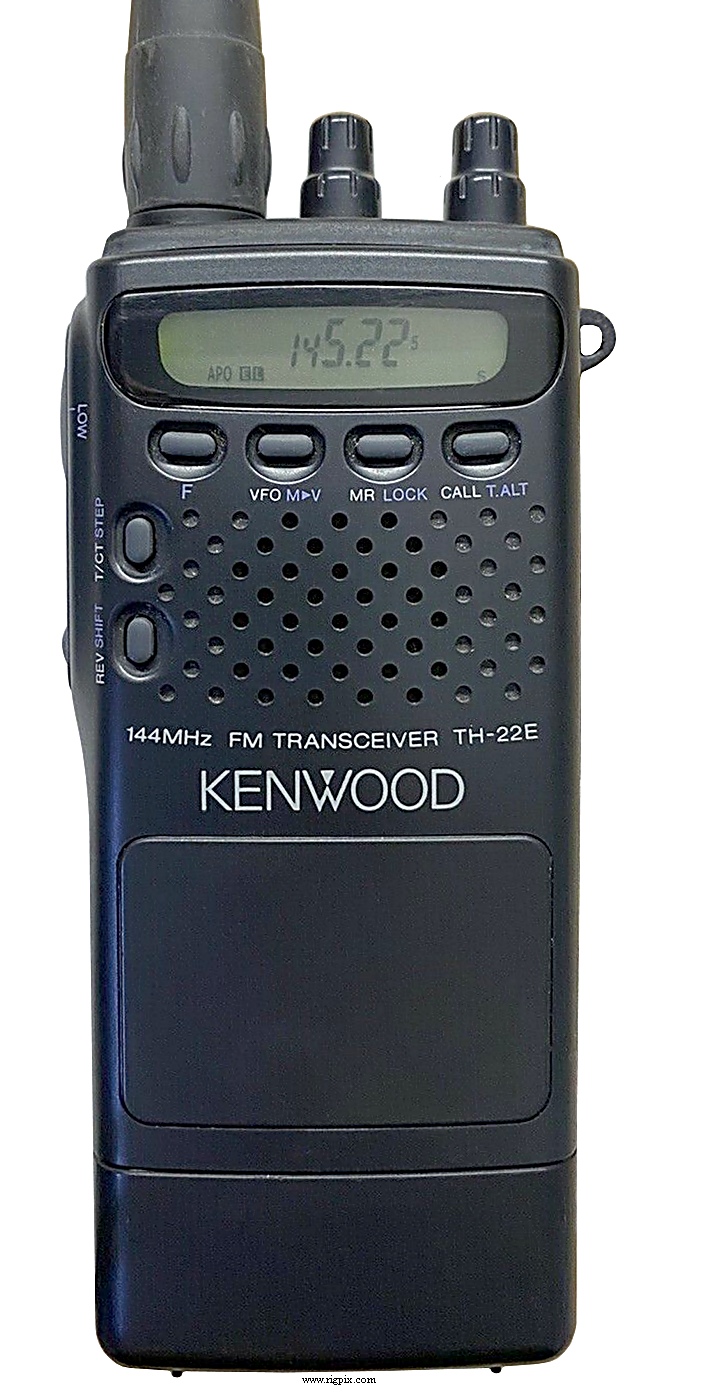

A picture of Kenwood TH-22E

SPECIFICATIONS

GENERAL
Type:Amateur VHF transceiver
Frequency range:144-146 MHz
Tuning steps:5 / 10 / 12.5 / 15 / 20 / 25 KHz
Mode:FM
Channels/memory management:40 regular
1 call
EEPROM storage
Repeater shift/offset:600 KHz
Power supply:4-15 VDC battery (6 VDC nominal) or 5-16 VDC external
Current drain/power consumption:RX: 15-45 mA
TX: 0.25-1.6 A
Antenna impedance/connector:50 ohms / BNC
Dimensions (W*H*D):56*117*24 mm (2.2*4.6*0.95"), with PB-32
Weight:290 gr (10.2 oz), with PB-32, antenna, handstrap and belt hook
Other features:CTCSS/PL encoder, DTSS




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: 45.05 MHz
2nd IF: 455 KHz
Sensitivity:0.16 uV (12 dB SINAD)
Selectivity:12 KHz (-6 dB), 28 KHz (-40 dB)
Image rejection:
AF output power/speaker:200 mW at 10% distortion / 8 ohms
External speaker connector:




TRANSMITTER SECTION
RF output power: Hi: 3-5 W (depending on voltage)
Lo: 0.5 W
El: 30 mW
Modulation system:Reactance
Max FM deviation:3.5 to 5 KHz
Spurious emissions:Less than -60 dB
Microphone impedance/connector:2 kohms / ?-pin




MISCELLANEOUS
Manufactured:1994-199x (Discontinued)
Additional info:New price 1994 in Sweden: 3295:- SEK
New price 1996 in Sweden: 3149:- SEK
Related documents:User manual (2.7 MB)
