Icom ID-1

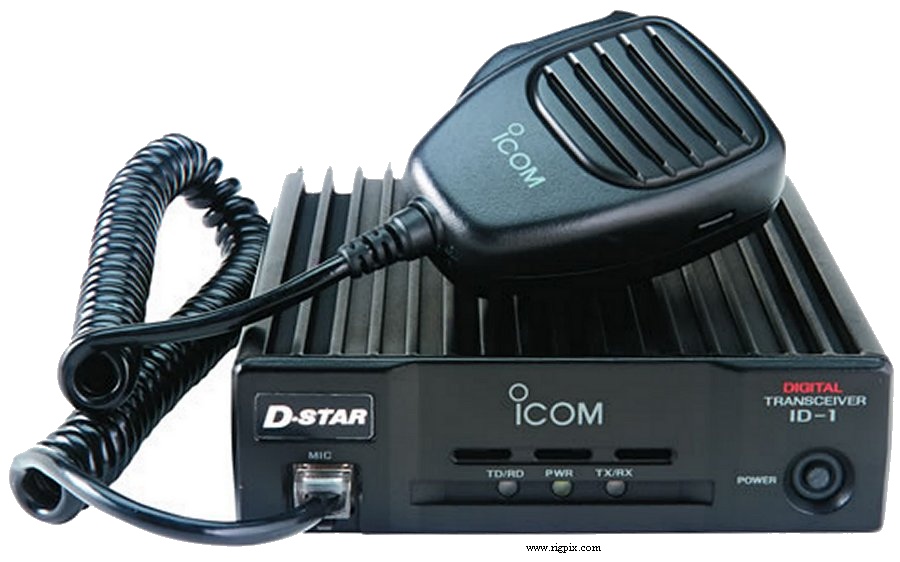

A picture of the Icom ID-1 system

SPECIFICATIONS

GENERAL
Type:Amateur UHF transceiver
Frequency range: TX: 1240-1300 MHz
RX: 1240-1300 MHz
Tuning steps:5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz
Frequency stability:±2.5 ppm @ -10 to +60°C (14 to 140°F)
Mode:FM / DV / DD (GMSK 4.8 kbps voice/128 kbps data, AMBE codec)
Channels / memory management: 100 regular
3 call
2 scan edge pairs
Non-volatile EEPROM storage
Repeater shift / offset:±0-60 MHz in any available step size
Power supply:13.8 VDC ±15%
Current drain / power consumption:RX: Max 1.5 A
TX: Max 7 A
Antenna impedance / connector:50 ohm / N-jack
Dimensions (W*H*D):Controller: 154*50*51 mm (6.06*1.97*2")
Transceiver: 141*40*166 mm (5.55*1.58*6.54")
Weight:Controller: 220 g (7.76 oz)
Transceiver: 1.2 Kg (2.65 lb)
Other features: D-Star concept. CTCSS/PL. TCP/IP, E-mail, video & picture capable.
Can be interfaced with the internet via a 10BASE-T connector.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne (Data)
1st IF: 243.95 MHz
2nd IF: 10.7 KHz
Triple conversion superheterodyne (FM/DV)
1st IF: 243.95 MHz
2nd IF: 31.05 KHz
3rd IF: 450 KHz
Sensitivity: FM: 0.18 uV (12 dB SINAD)
4.8 kbps voice: 0.35 uV (BER 1x10-2)
128 kbps data: 1.58 uV (BER 1x10-2)
Selectivity: FM
12 KHz (-6 dB)
30 KHz (-60 dB)
GMSK 4.8 kbps
6 KHz (-6 dB)
GMSK 128 kbps
140 KHz (-6 dB)
Image rejection:>50 dB
AF output power / speaker:2 W at 10% distortion / No internal speaker
External speaker connector:3.5 mm, 8 ohm




TRANSMITTER SECTION
RF output power:

HighLow
23 cm:10 W1 W
Modulation system:FM: Variable reactance modulation
Digital: Quadrature modulation
Max FM deviation (Factory set):±5 KHz
Spurious emissions:Better than -50 dB
Microphone impedance / connector:600 ohm / 8-pin (modular)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 2002-201x (Discontinued)
Additional info:New price 2008 in Sweden: SEK 12000:-
Related documents: User manual (2.2 MB)
Service manual (4.9 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
HM-154
MB-17A
OPC-440
OPC-647
RC-24
SP-7
SP-10
SP-22
Hand microphone
Mobile mounting bracket
Mic extension cable. 5 m (16.4 ft)
Mic extension cable. 2.5 m (8.2 ft)
Remote controller unit
External speaker
External speaker
External speaker
An inside picture of Icom ID-1 radio unit
A rear picture of Icom ID-1 radio unit
