Last modified 2009-01-31
|
Back to main Back to Icom Next mobile VHF/UHF Last modified 2009-01-31 |

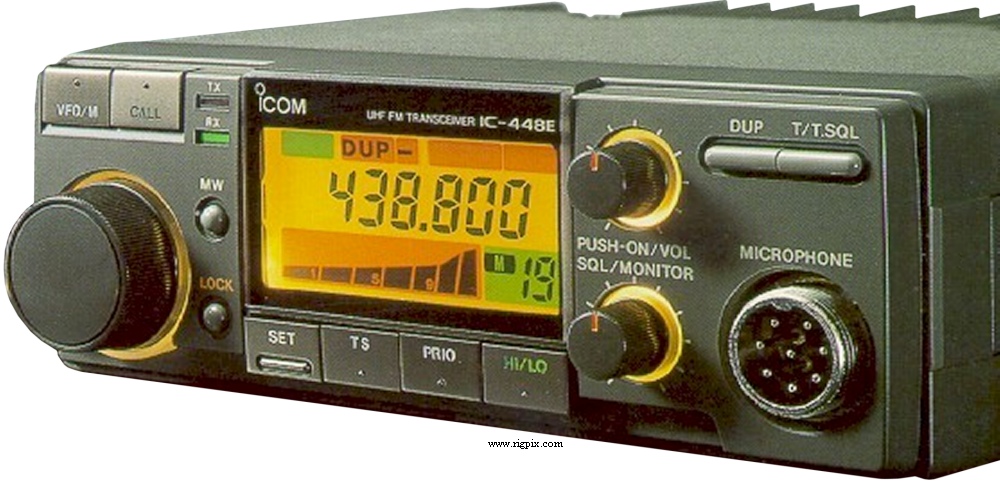

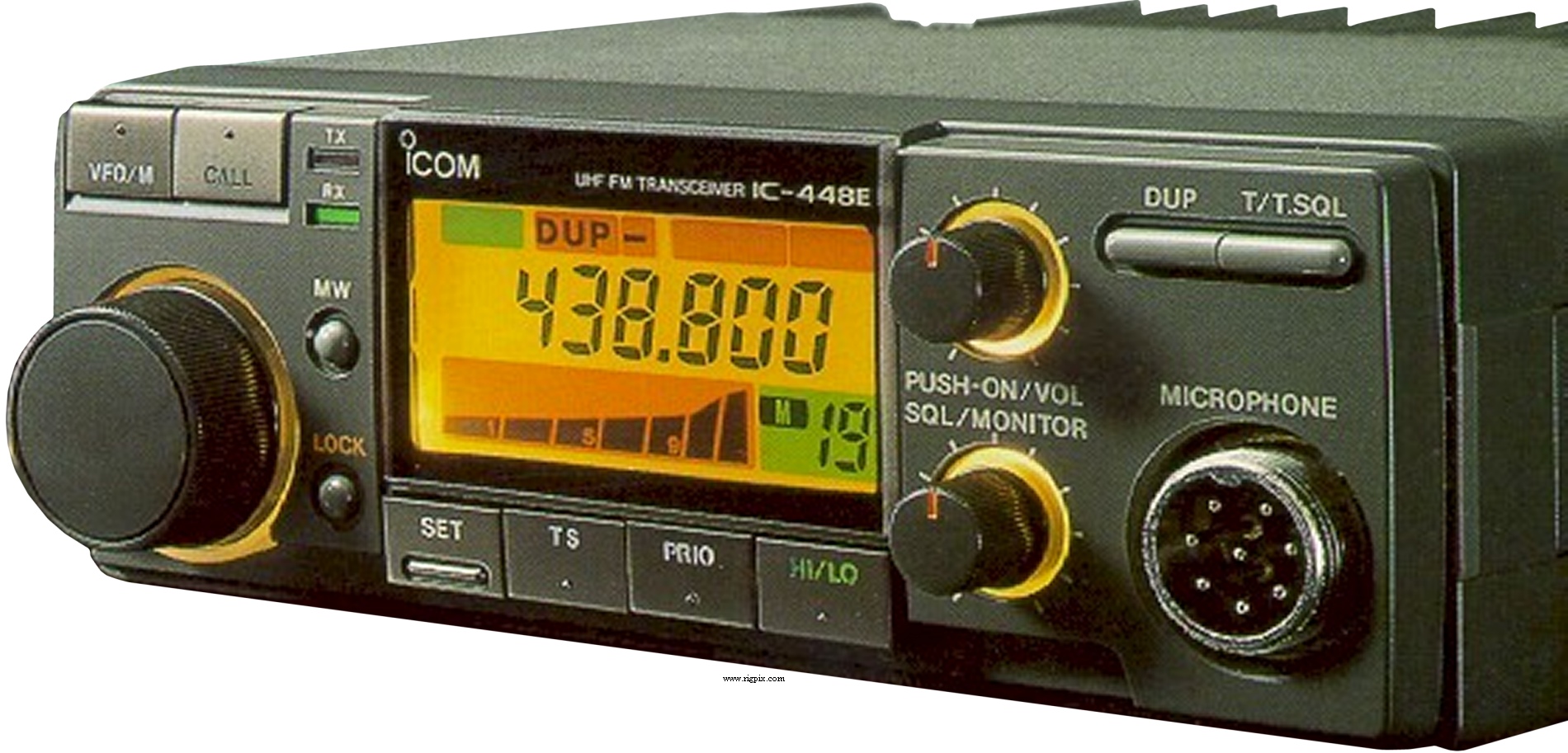

| Type: | Amateur UHF transceiver |
| Frequency range: | 430-440 MHz |
| Mode: | FM |
| RF Power output: | Hi: 35 W Lo: 5 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A TX: Max 9.5 A |
| Impedance: | 50 ohms, N |
| Dimensions (W*H*D): | 140*50*159 mm |
| Weight: | ? Kg |
| Manufactured: | Japan, 1988-1990 (Discontinued) |
| Other: | 20 memories New price 1989 in Sweden: 4600:- SEK |
| Related documents: | |
| Modifications: |
