| GENERAL |

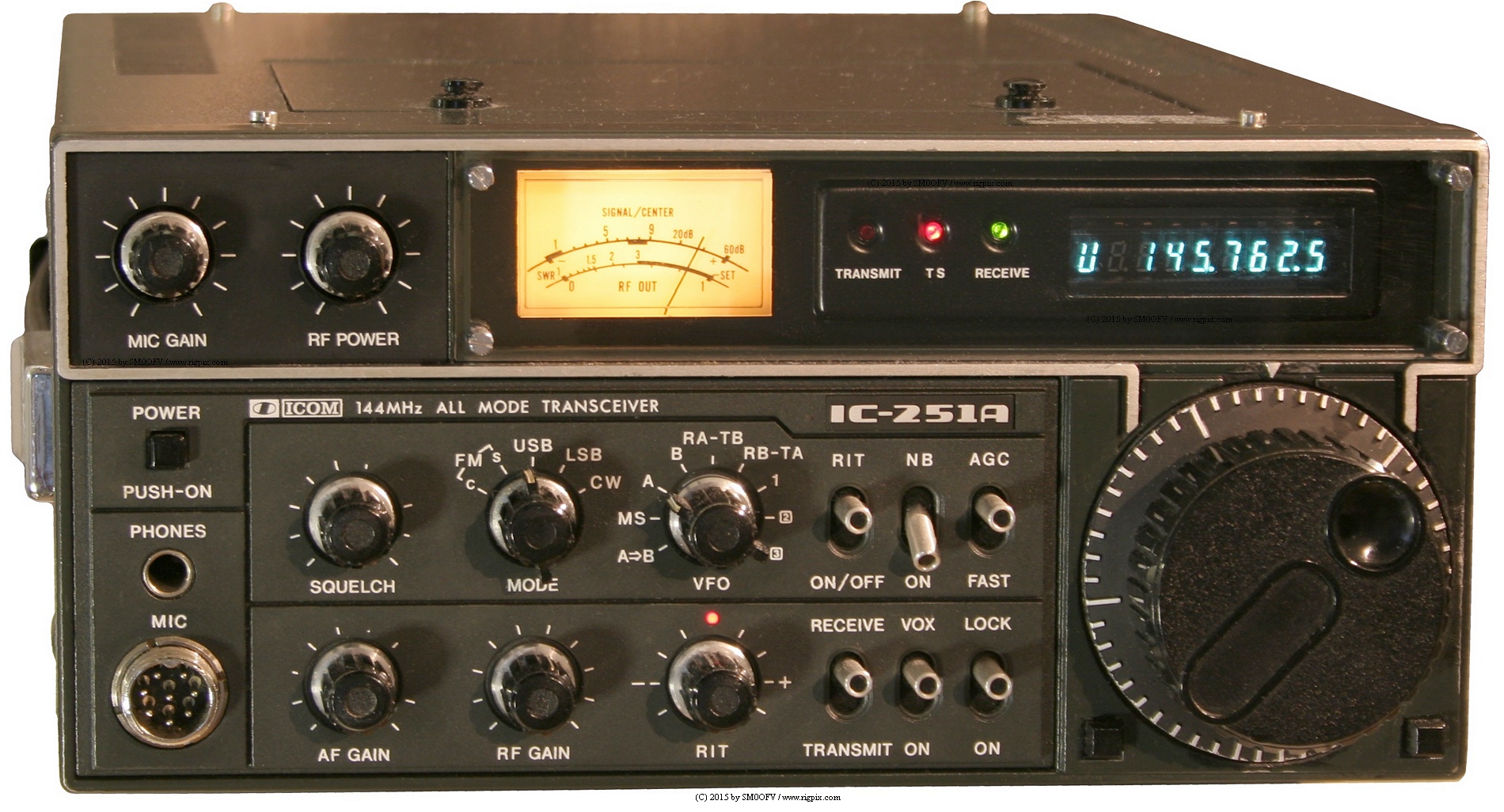

| Type: | Amateur VHF transceiver |
| Frequency range: |
USA
TX: 143.800-148.200 MHz
RX: 143.800-148.200 MHz
|
| Tuning steps: | 100 Hz, 1 / 5 KHz |
| Frequency stability: | Less than ±1.5 KHz @ -10 to +60°C (14 to 140°F) |
| Mode: | FM / SSB / CW |
| Channels / memory management: |
3 regular
|
| Repeater shift / offset: | No dedicated. Use VFO A/B split |

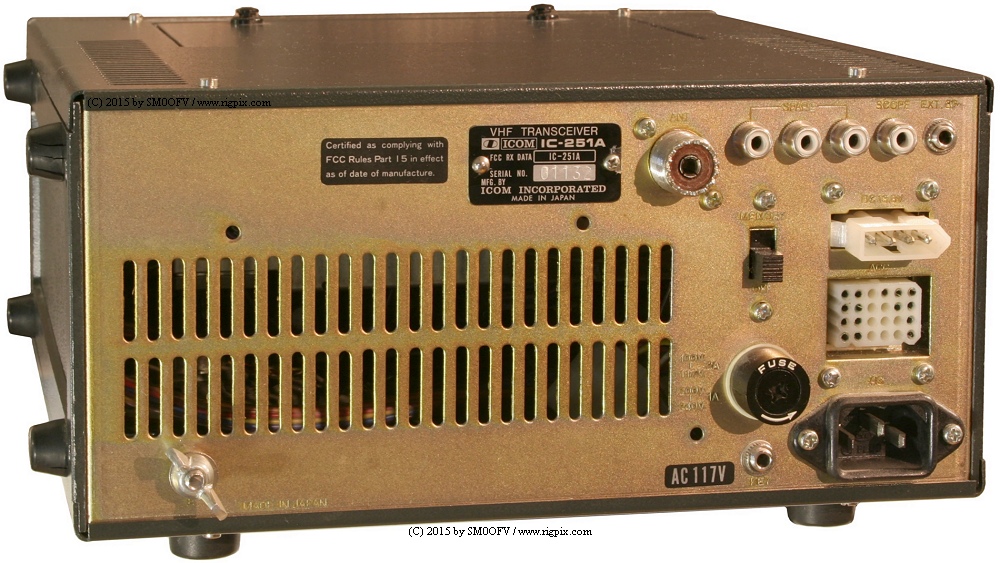

| Power supply: | Mains: 117 / 240 VAC (3-pin IEC C14 connector)
or 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Max 600 mA
TX: Max 2.3 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 241*111*264 mm (9.5*4.4*10.4") |
| Weight: | 5 Kg (11 lb) |
| Other features: | NB. SWR-meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB/CW)
IF: 10.7 MHz
Double conversion superheterodyne (FM)
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
SSB/CW: Better than 0.5 uV (10 dB S+N/N)
FM: Better than 0.6 uV for 20 dB noise quieting
|
| Squelch sensitivity: |
FM: Less than 0.4 uV (Threshold)
SSB/CW: Less than 0.6 uV (Threshold)
|
| Noise figure: | |
| Selectivity: |
FM
15 KHz (-6 dB)
30 KHz (-60 dB)
SSB/CW
2.4 KHz (-6 dB)
4.8 KHz (-60 dB)
|
| Image rejection: | More than 60 dB |
| AF output power / speaker: | 1.5 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max Pwr |
|---|
| FM: | 1-10 W |
| SSB (PEP): | 10 W |
| CW: | 10 W |
|
| Modulation system: | FM: Variable reactance
SSB: Balanced |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 1.3 Kohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1980-198x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (7.4 MB)
Schematic diagram (2.2 MB)
RF final: 2SC2094
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
IC-EX1
IC-EX2
IC-HM8
IC-HM10
IC-HP1
IC-MB5
IC-SM5
IC-SP2
|
Extension terminal
Extension terminal with 25 KHz marker
Hand microphone with DTMF keypad
Hand microphone with scanning
Headphones
Mobile mounting bracket
Desk microphone
External speaker
|
|
