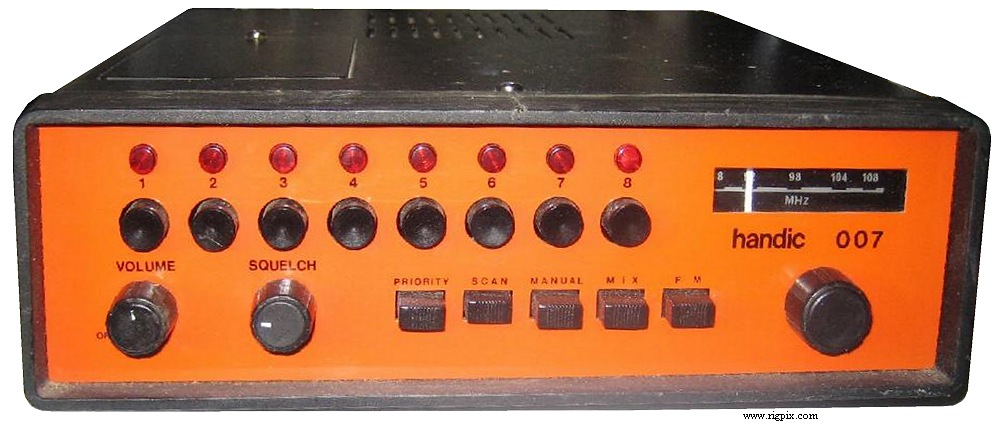

| GENERAL |
| Type: | VHF receiver/scanner |
| Frequency range: | 75-85 / 88-108 / 148-174 MHz |
| Tuning steps: |
Scanner: Channelized
88-108 MHz: Analog VFO
|
| Frequency stability: | ? ppm |
| Mode: | FM / WFM |
| Channels / memory management: |
8 regular
1 priority
1 XTAL per channel
|
| Power supply: | 12-15 VDC (Fixed power cord) |
| Current drain / power consumption: | Less than 725 mA @ 13.8 VDC |
| Antenna impedance / connector: | 50-75 ohm / Two DIN41585 (Motorola) |
| Dimensions (W*H*D): | 210*65*200 mm (8.27*2.56*7.87") |
| Weight: | 1.98 Kg (4.36 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (WFM)
IF: 10.85 MHz
Double conversion superheterodyne (FM)
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
79 MHz: 0.5 uV nominal
87-108 MHz: 2 uV nominal
166 MHz: 0.5 uV nominal
|
| Selectivity: | FM: 27 KHz (-6 dB)
40 KHz (-50 dB) nominal |
| Image rejection: | 79 MHz: 45 dB
87-108 MHz: 45 dB
166 MHz: 35 dB |
| AF output power / speaker: | 2.8 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 3.2-16 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1974-197x (Discontinued) |
| Additional info: |
New price 1976 in Sweden: SEK 1230:-
New price 1978 in Sweden: SEK 995:-
|
| Related documents: | Service manual (4.1 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
