Eddystone 990R

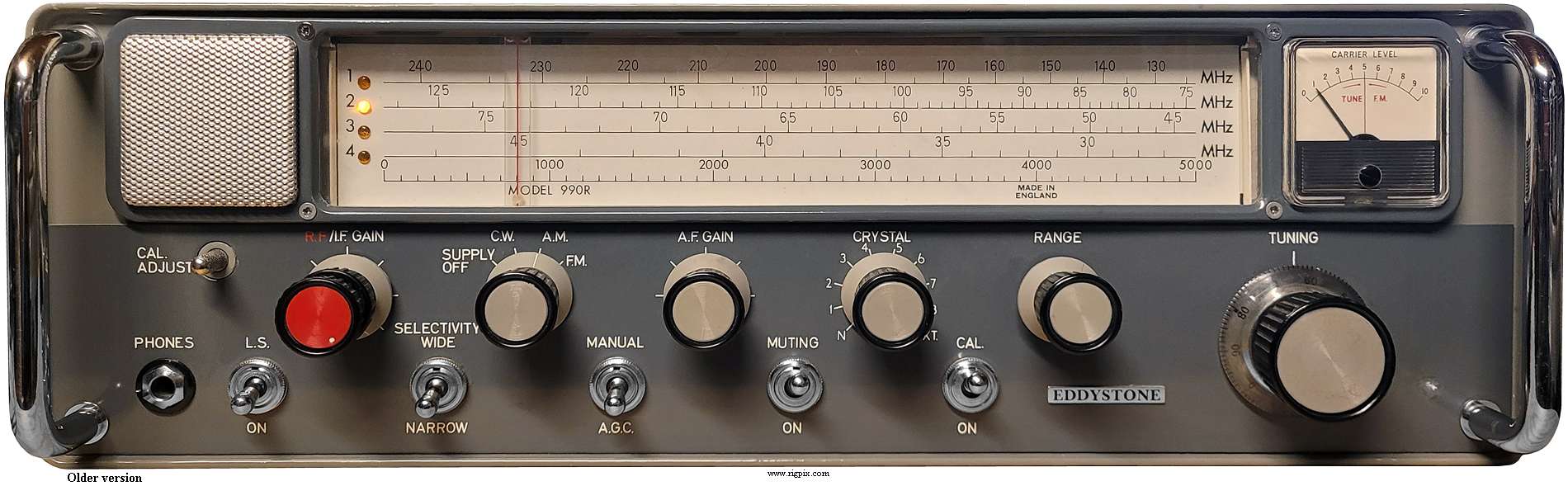

A picture of Eddystone 990R older version

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 27-240 MHz in 4 bands
Band 1:   130-240 MHz
Band 2:   75-130 MHz
Band 3:   46-76 MHz
Band 4:   27-46 MHz
Tuning steps:Continuous
Frequency stability:? ppm
Mode:AM / NFM / WFM / CW
Channels / memory management:
Power supply:Mains or 12 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:75 ohm / BNC
Dimensions (W*H*D): 426*154*298 mm (16.77*6.06*11.73"), bench version
483*154*342 mm (19.02*6.06*13.46"), rack version
Weight: 8.8 Kg (19.4 lb), bench version
9 Kg (19.84 lb), rack version
Other features:




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 10.7 MHz
Sensitivity:AM: 5 uV (10 dB S/N)
Selectivity:30 or 200 KHz (Other bandwidths were optional)
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:England, 1967-1981 (Discontinued)
Additional info:
Related documents:Service manual (5.9 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A picture of Eddystone 990R newer version
A rear picture of Eddystone 990R, older version
