| GENERAL |

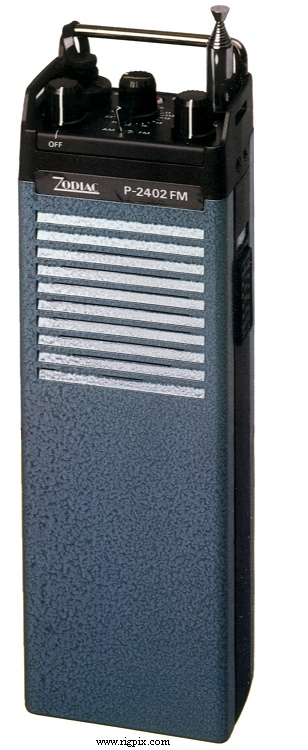

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 24 (1-23 + 11A) |
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | ±0.001% (~300 Hz) @ -25 to +55°C (-13 to +131°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC ±10% (Ten R6 / AA alkaline or NiCd batteries) or 12 VDC external |
| Current drain / power consumption: | RX: 20 mA
TX: Max 310 mA |
| Antenna impedance / connector: | 50 ohm / Phono (RCA) and fixed telescopic whip |
| Dimensions (W*H*D): | 78*240*49 mm (3.07*9.45*1.93") |
| Weight: | 1.15 Kg (2.54 lb) |
| Other features: |
Call button. Charging jack for NiCd batteries. Battery indicator.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (12 dB SINAD)
FM: 0.3 uV (12 dB SINAD)
|
| Squelch sensitivity: | 0.4 uV (Threshold) |
| Selectivity: | 20 KHz (-50 dB) |
| Image rejection: | |
| AF output power/speaker: | 1.5 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 800 mW |
| Modulation system: | |
| Max AM modulation (Factory set): | 100% |
| Max FM deviation: | ±2 KHz |
| Spurious emissions: | Less than -? dB |
| Microphone impedance/connector: | ? ohm / 8-pin DIN |
| Microphone input sensitivity: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1980-1988 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1981 in Sweden: SEK 1296:-
New price 1982 in Sweden: SEK 1530:-
New price 1983 in Sweden: SEK 1650:-
|
| Related documents: |
Flyer (1.5 MB, In swedish)
|
| Known markets and approvals: |
Sweden
Televerket: RL 3013/80
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | Radio & Television: #6/7 1981 |
| Options/Accessories: |
10x500 MAHS
BL-01
BLM-12
FA-10
MHA-01
MOS-01
TRA-04
|
NiCd battery pack
Battery charger
Charging unit for MHA-01
Compact stick-on antenna
Vehicle mount with power and speaker jacks
Speaker-microphone
Carrying harness with mike hanger
|
|
