| GENERAL |
| Type: | Citizen band transceiver |
Frequency range
depending on version: |
| France: | 26.965-27.405 MHz |
| Italy: | 26.865-27.265 MHz |
| Sweden: | 26.965-27.255 MHz |
| Switzerland (Early): | 26.965-27.225 MHz |
| Switzerland (Later): | 26.965-27.405 MHz |
|
Channels / tuning steps
depending on version: |
| France: | 40 |
| Italy: | 34 |
| Sweden: | 25 (1-24 + 11A) * |
| Switzerland (Early): | 22 |
| Switzerland (Later): | 40 |
* NB! According to swedish law at the time, SSB was only allowed on ch 24,
and therefore, switching this radio to LSB or USB automatically changed the
channel to 24.
|
| Mode: | AM / FM / SSB |
| Frequency control: | PLL (MSM5807) |
| Frequency stability: | ±300 Hz @ -25 to +55°C (-13 to +131°F) |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 13.2 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | RX: Max 280 mA
TX: Max 1.8 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 210*60*180 mm (8.3*2.4*7.1") |
| Weight: | 1.6 Kg (3.5 lb) |
| Other features: | PA. ANL. NB. Local/DX switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz - Crystal filter: 10LO2D
2nd IF: 455 KHz - Ceramic filter: SFR455H
|
| Sensitivity: |
AM: ? uV
FM: 0.4 uV (12 dB SINAD)
SSB: ? uV
|
| Squelch sensitivity: | |
| Selectivity: | 20 KHz (-70 dB) |
| Image rejection: | |
| AF output power / speaker: | 4 W at ?% distortion / ? ohm |
| External speaker connector: | 5-pin DIN |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
France:
AM: 4 W
FM: 4 W
SSB: 12 W
Italy:
AM: 2.4 W
FM: 2.4 W
SSB: 4.8 W
Sweden:
AM: 3.5 W
FM: 3.5 W
SSB: 15 W
Switzerland (Early):
AM: 0.5 W
FM: 0.5 W
SSB: 0.5 W
Switzerland (Later):
AM: 1 W
FM: 4 W
SSB: 4 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2 KHz |
| Spurious emissions: | Better than -? dB |

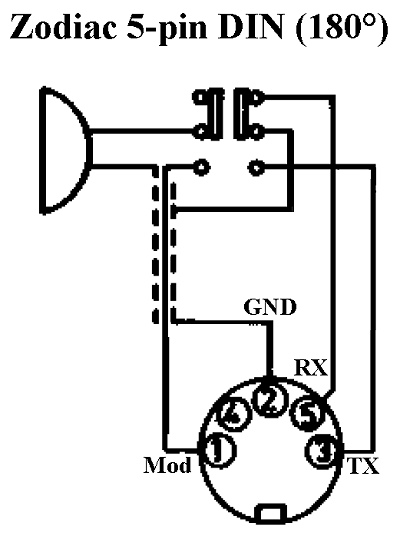

| Microphone impedance / connector: | ? ohm / 5-pin (180° DIN) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1982-1986 (Discontinued) |
| Main PCB: |
111147 by ?
Double sided with non-plated through holes and through-hole components.
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual + schematic diagram (1.4 MB, in swedish)
FM-IF: TA7130P
PLL: MSM5807
RF driver: 2SC2166
RF final: 2SC1969
|
| Market(s) / Approval(s): |
Sweden
Televerket: R1 3013/83
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BE-01
BM-01
H-3
HMH-01
MLS-01
SCM-100
|
AC power supply. 13.2 VDC, 1.8 A
Amplified electret desk microphone
External waterproof speaker
Telephone style speaker-microphone
Hand microphone with built-in selcall
