Teaberry (American Radio Corporation) ST-9F DX

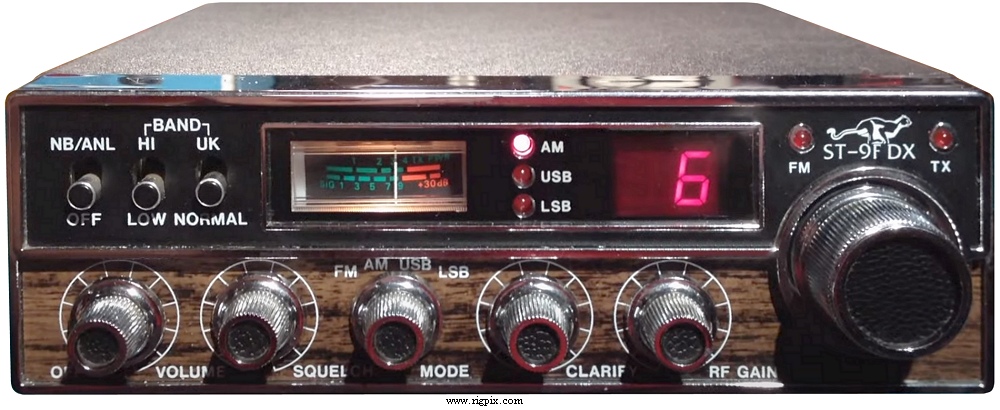

A picture of Teaberry (American Radio Corporation) ST-9F DX

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range: 26.965-27.99125 MHz in three bands:
26.965-27.405 MHz
27.415-27.855 MHz
27.60125-27.99125 MHz (UK 27/81)
Channels / tuning steps:120
Mode:AM / FM / SSB
Frequency control:PLL (MB8719)
Frequency stability:?%
Clarifier or Delta tune:±? KHz
Power supply:13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:ANL/NB.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB)
1st IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power: AM: 4 W
SSB: 12 W
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Taiwan, 198x-198x (Discontinued)
Main PCB:PC-893 by Uniden
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
