SuperStar 800

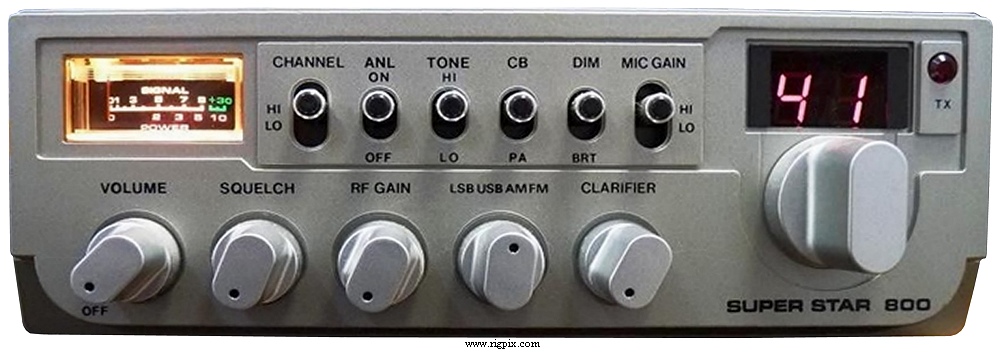

A picture of SuperStar 800

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range:26.965-27.855 MHz
Channels / tuning steps:80
Mode:AM / FM / SSB
Frequency control:PLL
Frequency stability:?%
Clarifier or Delta tune:±? KHz
Power supply:13.8 VDC (2-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:? W
Modulation system:
Max FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 19xx-19xx (Discontinued)
Main PCB:PCMA031A by Cybernet Electronics Corporation
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -

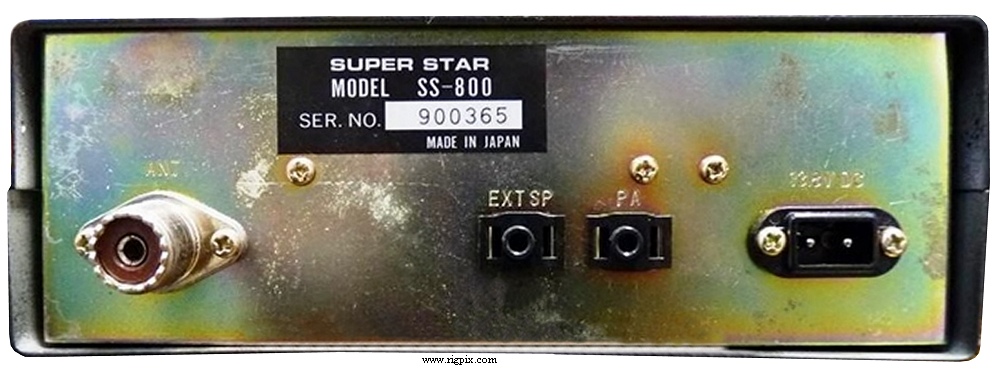

A rear picture of SuperStar 800
