HY-GAIN I
| Frequency range: | 26.965-27.255 MHz |
| Channels: | 23 |
| Mode: | AM |
| Frequency generation: | PLL |
| Power output: | 3.5 W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx (Late seventies, early eighties) |
| Other: | |
HY-GAIN II (2702)
| Frequency range: | 26.965-27.255 MHz |
| Channels: | 24 (Incl. 11A) |
| Mode: | AM |
| Frequency generation: | PLL |
| Power output: | 3.5 W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx (Late seventies, early eighties) |
| Other: | New price 1979 in Sweden: 1095:- SEK |
HY-GAIN III (2703)
| Frequency range: | 26.965-27.255 MHz |
| Channels: | 24 (Incl. 11A) |
| Mode: | AM |
| Frequency generation: | PLL |
| Power output: | 3.5 W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx (Late seventies, early eighties) |
| Other: | New price 1979 in Sweden: 1595:- SEK |
HY-GAIN V (2705)
Frequency range
depending on version: | 26.965-27.255 MHz (Sweden)
26.965-27.405 MHz (USA) |
| Channels: | 24 (40) |
| Mode: | AM/SSB |
| Frequency generation: | PLL |
| Power output: | AM 3.5 W (4 W), SSB 15 W (PEP) |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | 190*60*250 mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx (Early eighties) |
| Other: | |
HY-GAIN V AFS (2705AFS)
| Frequency range: | 26.965-27.255 MHz |
| Channels: | 24 |
| Mode: | AM/FM/SSB |
| Frequency generation: | PLL |
| Power output: | AM/FM 3.5 W, SSB 15 W (PEP) |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | 190*60*250 mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx (Early eighties) |
| Other: | |
HY-GAIN V (2795)
| Frequency range: | 26.965-28.855 MHz |
| Channels: | 2 x 40 |
| Mode: | AM/FM/SSB |
| Frequency generation: | PLL |
| Power output: | AM/FM 4 W, SSB 12 W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | 190*60*250 mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx (Early eighties) |
| Other: | |
HY-GAIN V (2795DX)
| Frequency range: | 26.965-28.305 MHz |
| Channels: | 3 x 40 |
| Mode: | AM/FM/SSB |
| Frequency generation: | PLL |
| Power output: | AM/FM 4 W, SSB 12 W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | 190*60*250 mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx (Early eighties) |
| Other: | |
HY-GAIN 9
| Frequency range: | 26.965-27.? MHz |
| Channels: | ? |
| Mode: | AM |
| Frequency generation: | PLL |
| Power output: | ? W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx |
| Other: | |
HY-GAIN HY-RANGE II
| Frequency range: | 26.965-27.255 MHz |
| Channels: | 23 |
| Mode: | AM |
| Frequency generation: | PLL |
| Power output: | 3.5 W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx (Late seventies, early eighties) |
| Other: | |
HY-GAIN IV
| Frequency range: | 26.965-27.255 MHz (Europe)
26.965-27.405 (USA) |
| Channels: | 23 (40) |
| Mode: | AM |
| Frequency generation: | PLL |
| Power output: | 3.5 W (4 W) |
| Voltage: | 13.8 VDC or mains |
| Current drain: | RX: Max ? A
TX: Max ? A |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | 19xx-19xx |
| Other: | |

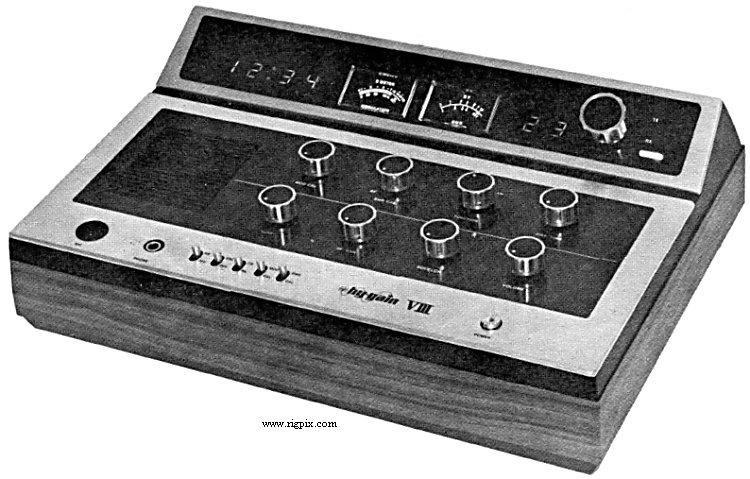

HY-GAIN VIII
| Frequency range: | 26.965-27.? MHz |
| Channels: | ? |
| Mode: | ? |
| Frequency generation: | PLL |
| Power output: | ? W |
| Voltage: | 13.8 VDC or mains |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx |
| Other: | |
HY-GAIN 623
| Frequency range: | 26.965-27.255 MHz |
| Channels: | 23 |
| Mode: | AM/SSB |
| Frequency generation: | PLL |
| Power output: | 3.5 W (AM), ? W (SSB) |
| Voltage: | Mains |
| Current drain: | RX: Max ? A, TX: Max ? A |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? |
| Manufactured: | 19xx-19xx |
| Other: | |
|
