Hallicrafters CB-9

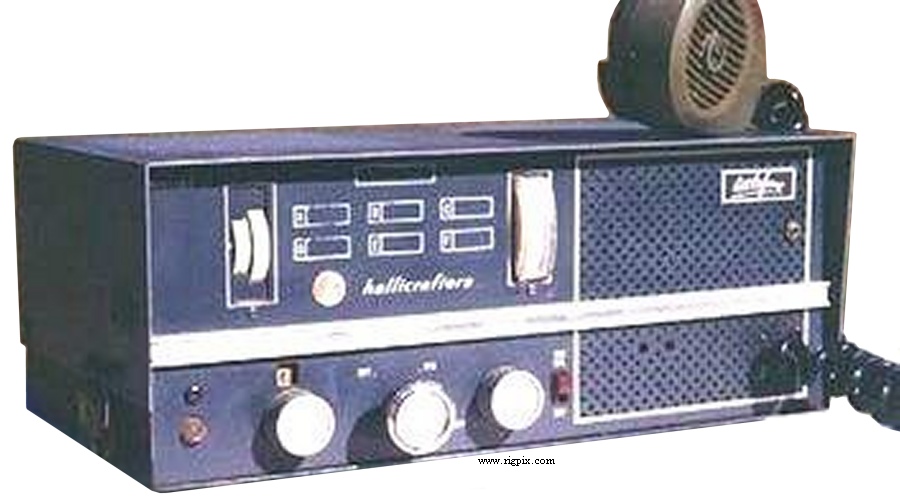

A picture of Hallicrafters CB-9

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:6
Mode:AM
Frequency control:TX: XTAL
RX: VFO
Frequency stability:?%
Clarifier or Delta tune:No
Power supply:Mains: 117 VAC
or ? VDC
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:S-meter




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 1.65 MHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:~3.5 W (5 W input)
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:USA, 1965-1965 (Discontinued)
Main PCB:
Sub PCBs:
Additional info: 7 tubes.
New price 1965 in the US: $129.95
Related documents:
Sams Photofact #:CB-8 (August 1965)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
