Connex Saturn CX-33 SSB

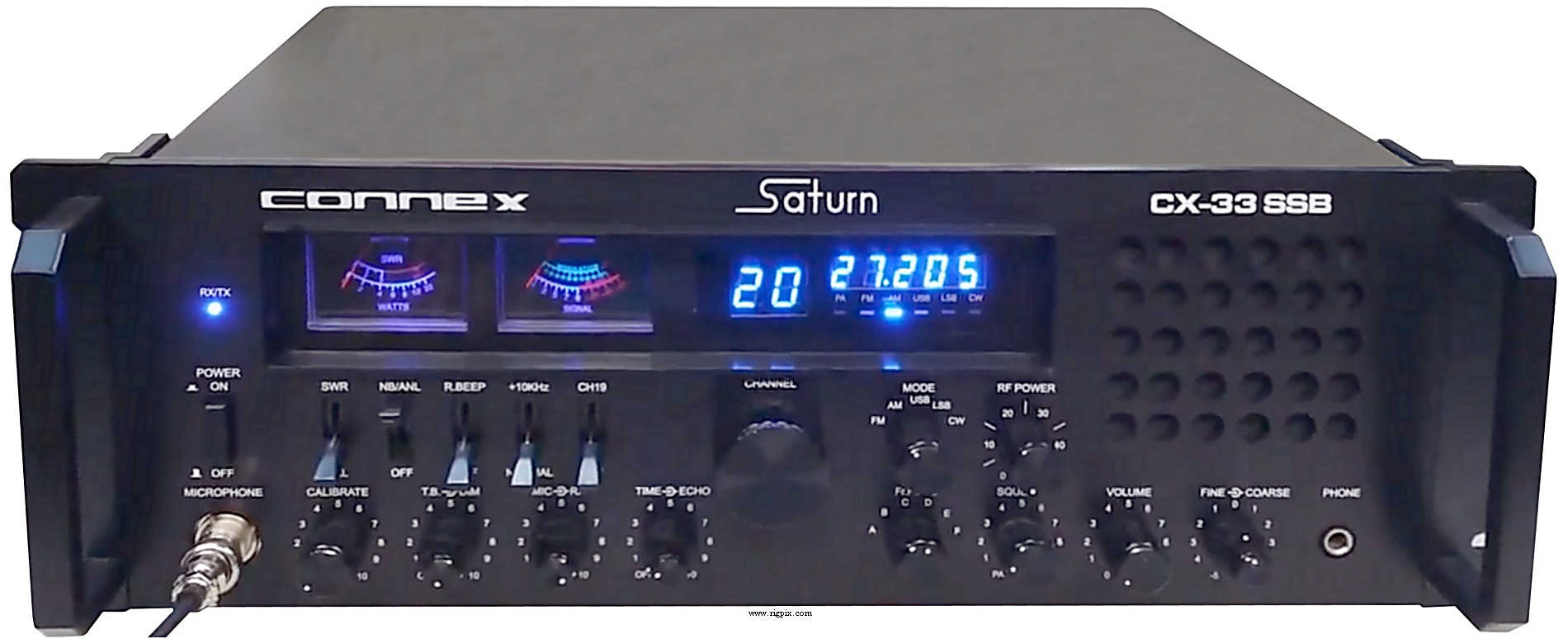

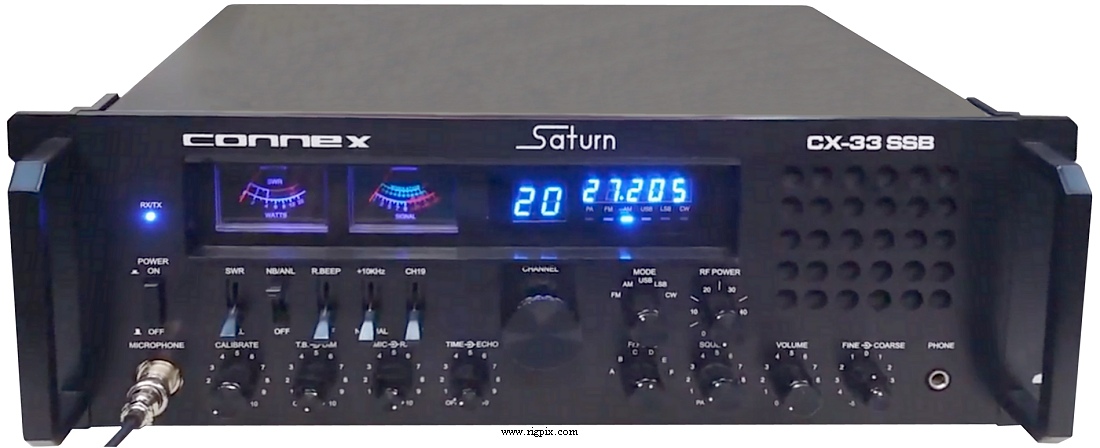

A picture of Connex Saturn CX-33 SSB

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range: 25.615-28.305 MHz (Export mode)
28.015-28.465 MHz (10 m mode)
Channels/tuning steps:240 (6*40)
Mode:AM/FM/SSB/CW
Frequency control:PLL
Frequency stability:0.001%
Power supply:Mains: 110 VAC (220 VAC optional)
Current drain/power consumption:RX: ? W
TX: Less than 90 W
Antenna impedance/connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features: ANL/NB. Roger beep. Talkback. Echo chamber.
+10 KHz switch. Channel 19 switch. SWR-meter.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity: AM/CW: 0.5 uV (10 dB S+N/N)
FM: 0.25 uV (12 dB S+N/N)
SSB: 0.15 uV (10 dB S+N/N)
Selectivity:10 KHz (-60 dB)
Image rejection:50 dB
AF output power/speaker:2 W at 10% distortion / 8 ohm
External speaker connector:




TRANSMITTER SECTION
RF output power: AM/FM/CW: 10 W
SSB: 25 W (PEP)
Modulation system: AM: Class B amplitude modulation
SSB: Dual-balanced modulation
Max FM deviation:5 KHz
Spurious emissions:Less than -60 dB
Microphone impedance/connector:? ohm / 4-pin (Metal screw ring connector)
Microphone input sensitivity:? mV




MISCELLANEOUS
Manufactured:Taiwan, xxxx-xxxx (Discontinued)
Main PCB:
Additional info:
Related documents:
Modifications:
Reviews:
Options/Accessories:
- -
