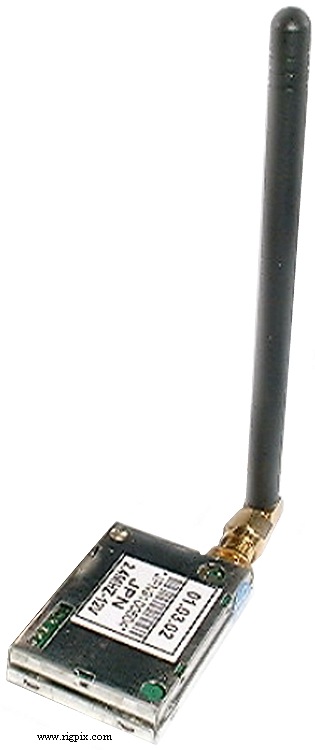

Misumi MST-AB010M
SPECIFICATIONS
| Type: | UHF video transmitter |
| Frequency range: | 2.4 GHz (4 channels)
Ch1: 2.413 GHz
Ch2: 2.432 GHz
Ch3: 2.451 GHz
Ch4: 2.470 GHz |
| Mode: | FM-video. 5.5 MHz audio sub-carrier |
| RF Power output: | 100 mW |
| Voltage: | 12 VDC |
| Current drain: | Max 140 mA |
| Impedance: | 50-75 ohms, SMA |
| Dimensions (W*H*D): | 39*6*27 mm |
| Weight: | 26 gr |
| Manufactured: | 200x-200x |
| Other: | |
| Related documents: | |
| Modifications: | |
|
