G1MFG 13 cm

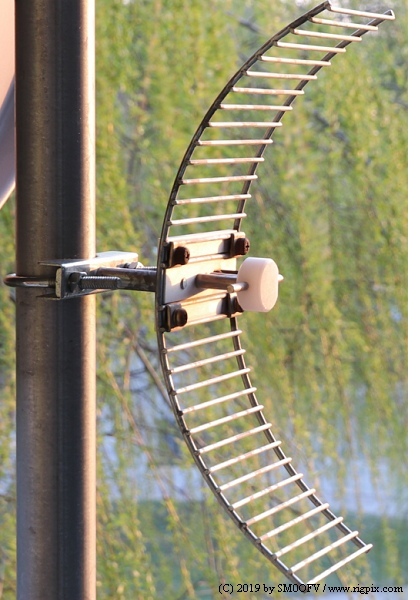

A picture of G1MFG 13 cm

SPECIFICATIONS

Type:Amateur UHF corner reflector antenna
Frequency range / band(s): TX: 13 cm
RX: 2200-2700 MHz
Bandwidth:
Gain:13 dBi
Beamwidth (-3 dB):E-plane: ?°
H-plane: ?°
G/T @ 30° elevation:-
Max power:35 W (Continuous)
Impedance / connector:50 ohm / SMA
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:? cm (?")
Dimensions:95*270*120 mm (3.5*10.5*4.5"), including mast standoff
Weight:310 g (10.93 oz), including mounting hardware
Mast mount diameter:?-? mm (?-?")
Manufactured:199x-20xx (Discontinued)
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
