Diamond F-22

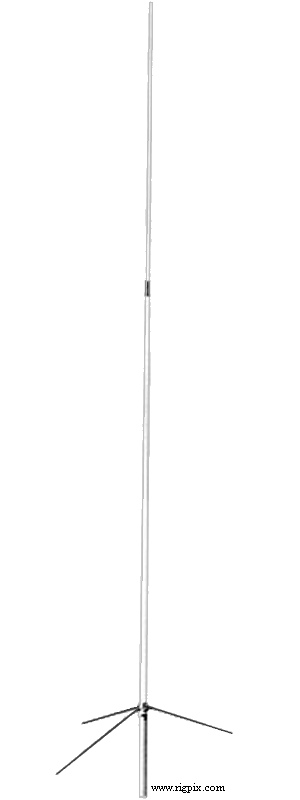

A picture of Diamond F-22

SPECIFICATIONS

Type:Amateur VHF vertical base antenna
Frequency range / band(s):2 m - 2*7/8-wave
Bandwidth:
Gain:6.7 dB
Beamwidth (-3 dB):Omni
G/T @ 30° elevation:-
Max power:200 W
Impedance / connector:50 ohm / SO-239 (M-jack)
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:-
Dimensions:Height: 3.2 m (10.5 ft)
Weight:1.3 Kg (2.87 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:198x-20xx
Additional info: New price 2010 in Sweden: SEK 1150:-
Related documents:
Reviews:
Options / Accessories:
- -
