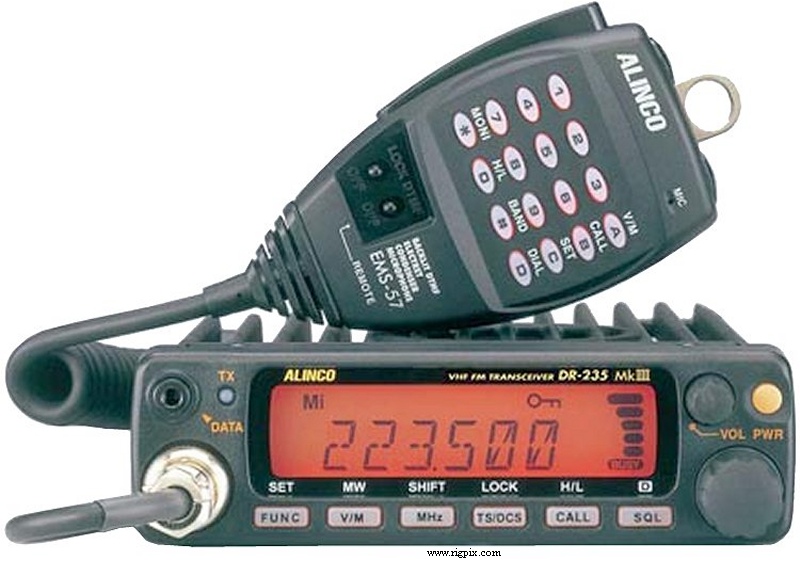

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
USA
TX: 222-225 MHz
RX: 216-278 MHz
(RX/TX 200-299.995 MHz after modification, depending on VCO alignment)
|
| Tuning steps: | 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±2.5 ppm (No temperature reference) |
| Mode: | FM / NFM |
| Channels / memory management: |
100 regular with alpha tags
1 call
1 scan edge pair (Program scan)
10 DTMF autodial
Non-volatile EEPROM storage
|
| Repeater shift / offset: | ±0 to 99.995 MHz |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 400-600 mA
TX: Max 8 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 142*40*174 mm (5.59*1.58*6.85") |
| Weight: | 1 Kg (2.2 lb) |
| Other features: |
CTCSS/PL and DCS. DTMF. Theft alarm. 1K2 / 9K6 TNC option.
Digital voice board option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.85 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: |
FM:
12 KHz (-6 dB)
28 KHz (-60 dB)
NFM:
6 KHz (-6 dB)
16 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 25 W | 10 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2007-20xx |
| Additional info: | |
| Related documents: | User manual (11.5 MB) |
| Modifications and fixes: | Frequency expansion (1 KB) |
| Reviews: | |
| Options / Accessories: |
|
