Alinco DJ-X01 "Wave catcher"

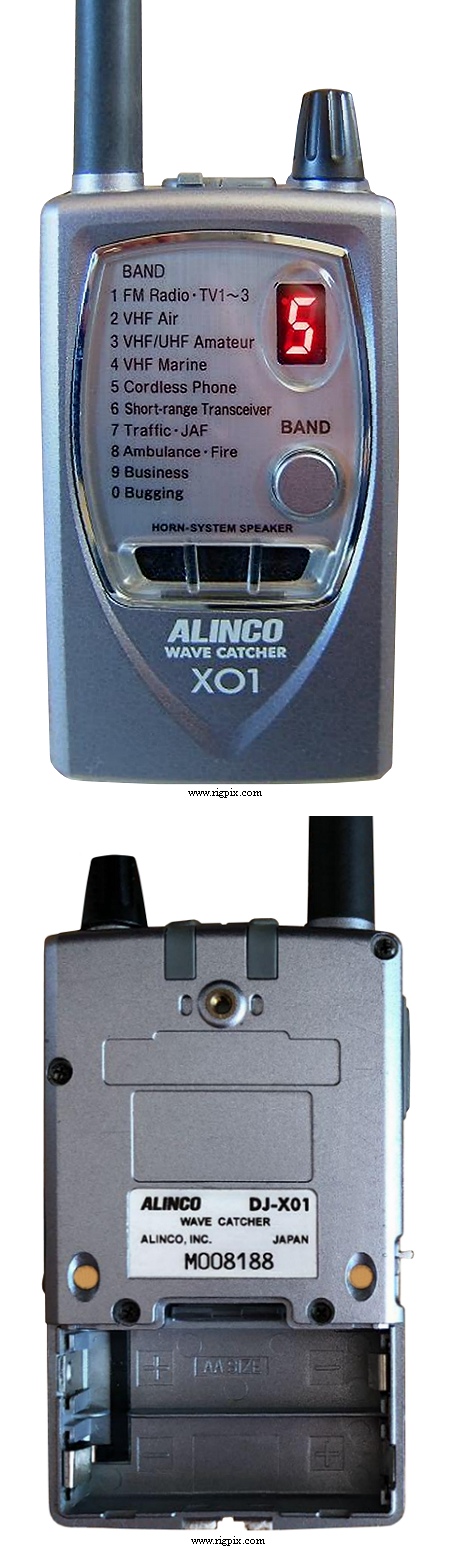

A picture of Alinco DJ-X01 ''Wave catcher''

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range: Japanese domestic market
76.1-170 / 380.2125-450 MHz
Tuning steps:Channelized
Frequency stability:? ppm
Mode:AM / FM / WFM
Channels / memory management: ?
Power supply:2.4-3 VDC (Two R6 / AA alkaline or NiMH batteries)
or 4.5-6 VDC external (Barrel connector, center positive)
Current drain / power consumption:Max 80 mA
Antenna impedance / connector:50 ohm / SMA
Dimensions (W*H*D):58*100*19 mm (2.28*3.94*0.75")
Weight:150 g (5.29 oz)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 39.15 MHz (AM/FM) - 13.35 MHz (WFM)
2nd IF: 450 KHz
Sensitivity: AM (10 dB S/N)
108-136 MHz: 1.41 uV
FM (12 dB SINAD)
136-170 MHz: 0.45 uV
380-450 MHz: 0.6 uV
WFM (12 dB SINAD)
76.1-108 MHz: 3.16 uV
Selectivity:
Image rejection:
AF output power / speaker:80 mW at ?% distortion / ? ohm
External speaker connector:3.5 mm




MISCELLANEOUS
Manufactured:Japan, 2004-20xx (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
