Tonna 220745

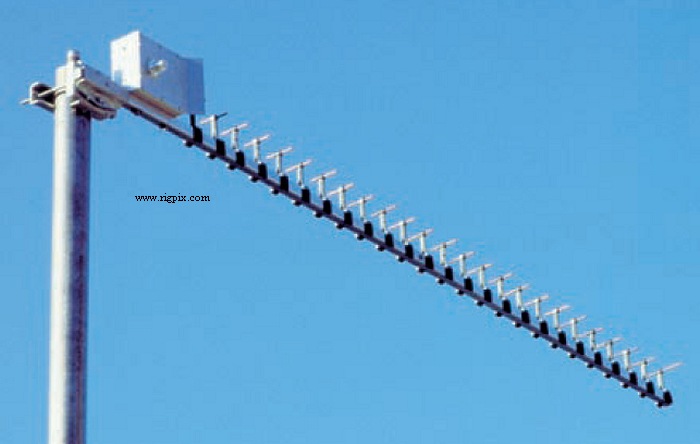

A picture of Tonna 220745

SPECIFICATIONS

Type:Amateur UHF Yagi, 25 elements
Frequency range / band(s):2300-2420 MHz (13 cm)
Bandwidth @ SWR:
Gain:15.9 dBd
Beamwidth (-3 dB):E-plane: ?°
H-plane: ?°
G/T @ 30° elevation:? dB
Max power:300 W continuous
Impedance / connector:50 ohm / N-plug
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:? m (? ft)
Dimensions:Boom length: 1.45 m (4.76 ft) = 11.6 wl
Longest element: ? mm (?")
Weight:950 (2.09 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:France, 19xx-20xx (Discontinued)
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
