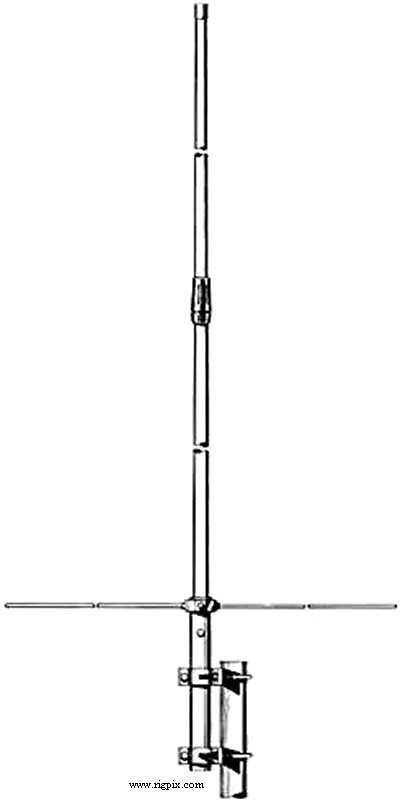

Sirio SA-270-LN
SPECIFICATIONS
| Type: | Amateur VHF/UHF vertical base antenna |
| Frequency range / band(s): |
144-146 MHz (2 m) - 2*5/8 wave
430-440 MHz (70 cm) - 5*5/8 wave
|
| Bandwidth @ SWR: | |
| Gain: | 2 m - 3.2 dBd
70 cm - 5.8 dBd |
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | 200 W |
| Impedance / connector: | 50 ohm / N-jack |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | - |
| Dimensions: | Height: 2.8 m (9.19 ft) |
| Weight: | 1.25 Kg (2.76 lb) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | 199x-20xx |
| Additional info: | |
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
