M2 6M9KHW

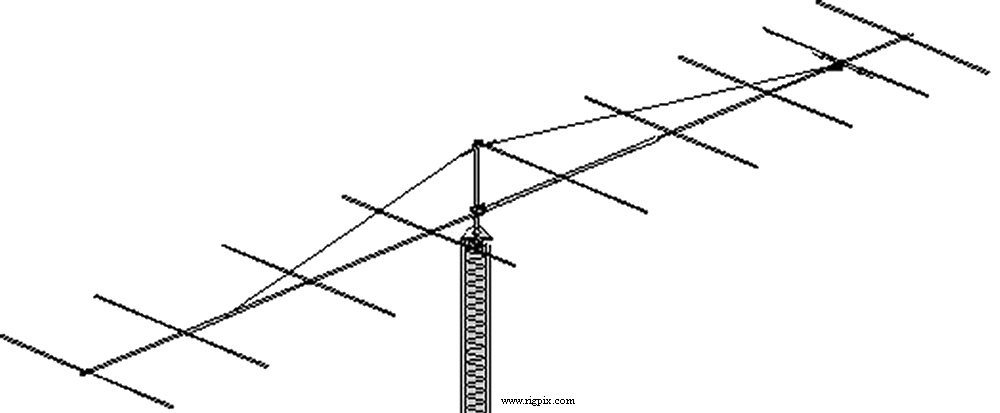

A picture of M2 6M9KHW

SPECIFICATIONS

Type:Amateur VHF yagi, 9 elements
Frequency range / band(s):50-50.4 MHz (6 m)
Bandwidth:
Gain:12.7 dBd, f/b 23 dB
Beamwidth (-3 dB):E-plane: ?°
H-plane: ?°
G/T @ 30° elevation:? dB
Max power:1.5 KW
Impedance / connector:50 ohm / N-jack
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:? m (? ft)
Dimensions:Boom length: 15.02 m (49.28 ft) = 2.5 wl
Longest element: ? m (? ft)
Weight:? Kg (? lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:19xx-20xx
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
