M2 2M9FM

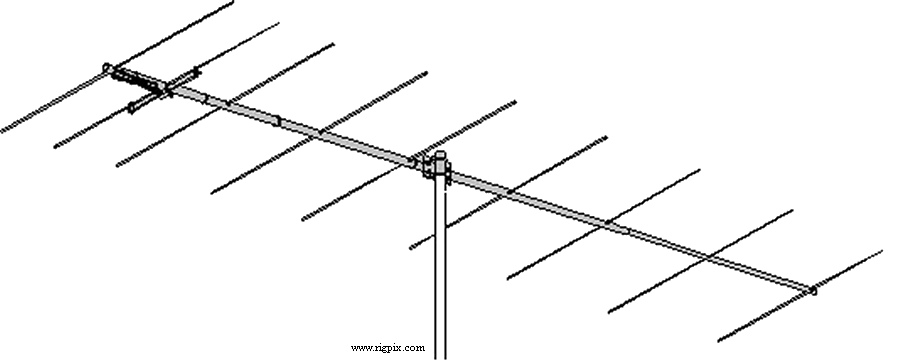

A picture of M2 2M9FM

SPECIFICATIONS

Type:Amateur VHF yagi, 9 elements
Frequency range / band(s):145-148 MHz (2 m)
Bandwidth:
Gain:12 dBd, f/b 12 dB
Beamwidth (-3 dB):E-plane: ?°
H-plane: ?°
G/T @ 30° elevation:? dB
Max power:1.5 KW
Impedance / connector:50 ohm / N-jack
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:? m (? ft)
Dimensions:Boom length: 4.42 m (14.5 ft) = 2.14 wl
Longest element: ? m (? ft)
Weight:? Kg (? lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:19xx-20xx
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
